White Switchable Self-adhesive PDLC Smart Glass Film

FOB Reference Price:Get Latest Price
US $30-200 / Square Meters | 1 Square Meter/Square Meters (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Guangdong, China (Mainland)
Brand Name:
ZEELANG
Model Number:
ZL-SGG-01
Function:
Decorative Glass, Heat Reflective Glass, Insulated Glass
Shape:
Flat
Structure:
Solid
Technique:
Clear Glass, Laminated Glass
Type:
Smart film
Material:
PDLC
Feature:
Self-Adhesive
Size:
Custom Sizes
shape:
flat
Color:
Clear, wihte,black,blue,pink and so on
Film Thickness:
0.44mm
Input Voltage:
AC 60V
Power:
10W for each 1 SQ meter
Certificate:
CE FCC ROHS
Parallel light through rate:
turn on >79%, turn off <5%
Supply Ability
Supply Ability:
1000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Safety sea-worthy wooden and plywood packing with paper interleaved.
Port
Shenzhen or Hongkong
Lead Time :
Shipped in 7 days after payment



Product Description



White switchable  self-adhesive PDLC smart glass film



Introduction:

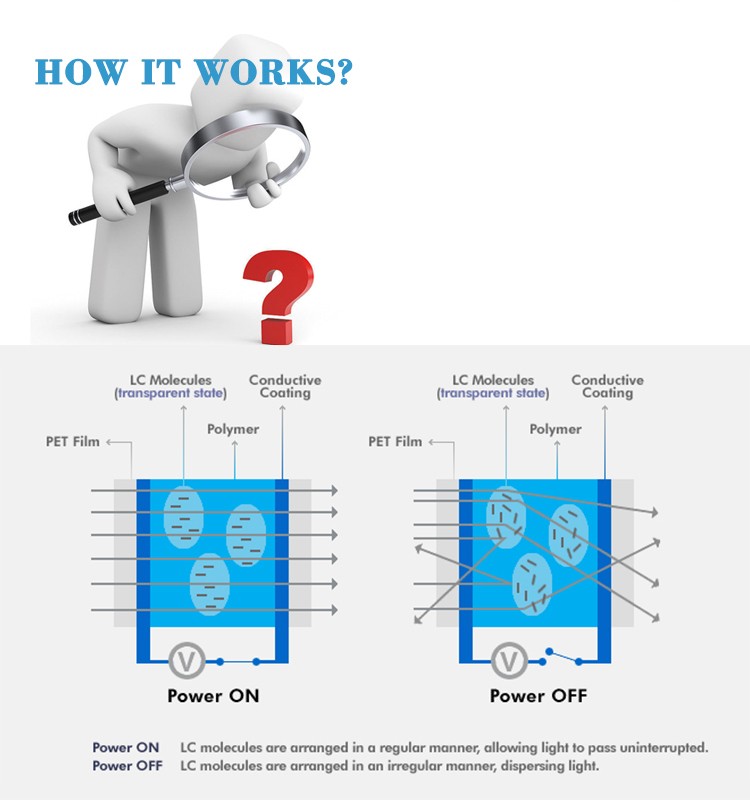

 Switchable Glass—— is a laminated glass product consisting of a Polymer Dispersed Liquid Crystal (PDLC) film sandwiched between two layers of glass and two layers of conductive interlayers. This PDLC film is what allows you to change the visual appearance of the glass from opaque (translucent) to clear (transparent).

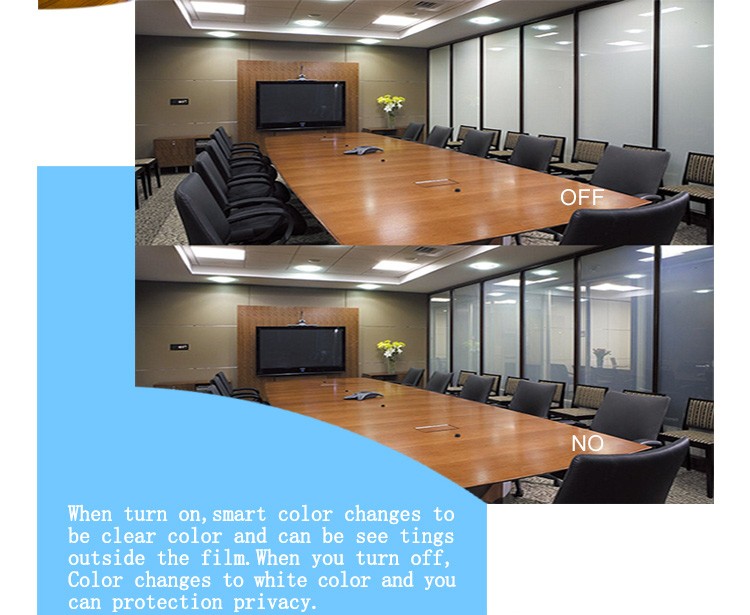

   When electricity is applied to the film the liquid crystals line up, changing the glass from opaque to clear. Conversely when electricity is removed, the liquid crystals return to their normal scattered positions changing the glass back to opaque.





Specifiction



Product nameWhite switchable  self-adhesive PDLC smart glass film
SizeMax wide size :1500MM , Length no limited
Thickness0.44MM
ColorON--- Clear  color , OFF--- oqaque
Package

cylinder and carton .

PaymentT/T,L/C,D/P,Western Union,Paypal
Delivery3-20 days after the deposit

 __10__04__03__09__06__08

Technical Data



2. Basic technology data



Film technology data







Adhesive film has the power consumption about 5-6W/ m²
less than power consumption of one fluorescent lamp about

36W/unit

Adhesive film which is transparent or opaque. excludes 99% outside

UV.

Operating environment : -10+60

Storage environment : -10+60

Life- span: more than 10years



Electric Characteristic







Operating Voltage : 0-110 VAC

Frequency  range :  50 - 60HZ

Film Voltage:DC12 to AC60V

Amperage : 100mA per square meter

Power consumption : about 10W per square meter

Switching speed :  less than 1 second   From Frosted to clear 100

milliseconds.



3. Testing Data of smart film






4.Film Package

Smart Film Package.jpg

5. Other more products choices in Zeelang

1



6 FAQ

1. How much for the size ?

RE : Film max size is 1500MM , length no limited . With max wide size , we can offer any size for you



 2. What is your MOQ ?

RE: Support small orders , 1pcs is OK.



 3.What is the quality different between PDLC and SFF?

RE: Quality is the same.Installation is different, since one is self-adhesive which is sticked to glass directly, while the other is non-adhesive which need to be  laminated with the glass.if customer not familary with the lamination

technology , better choose the adhesive one .



4. How to Operate the film ?

RE: Film will be connected to transformer , usually there have a remote can be change film

color into white and clear color



5. What is your advantage than other suppliers ?

 RE: Our smart film were testing transmittance by the third party and shows the transmittance reach to 80%; Secondly, with high viscous force compaired to previous film, You dont need to putting glue on the edges .
